Spring Boot #3 / 스프링부트 Thymeleaf 이용하여 View영역 잡기

살아남자제발 2019. 12. 7. 03:54

스프링부트에서는 뷰 템플릿 엔진으로 Thymeleaf를 밀고 있다.



장점으로는

1. 스프링MVC와 궁합이 잘 맞는다고 한다. 프로젝트 진행중이라 아직 잘 모르겠다.



단점으로는

1. HTML태그 여닫기와 관련된 짜증스런 이슈(검색해보니 비슷한 얘기가 많음)

2. "상대적으로" JSP보다 생태계가 작아서 검색으로 정보 찾기가 쉽지 않다.





일단 적용해서 진행해보다가 별로면 바로 JSP로 돌아갈 생각이다.





1. 의존성 주입



<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-thymeleaf</artifactId>
</dependency>
<dependency>
  <groupId>nz.net.ultraq.thymeleaf</groupId>
  <artifactId>thymeleaf-layout-dialect</artifactId>
</dependency>







2.  타임리프 프로터피 설정



spring.thymeleaf.prefix=classpath:templates/		//HTML파일 최상위
spring.thymeleaf.check-template-location=true		//
spring.thymeleaf.suffix=.html				//확장자 설정
spring.thymeleaf.mode=HTML5				//
spring.thymeleaf.cache=false				//캐시사용여부 true일시 html파일만 고쳐도 서버재기동을 해야함
spring.thymeleaf.order=0				//

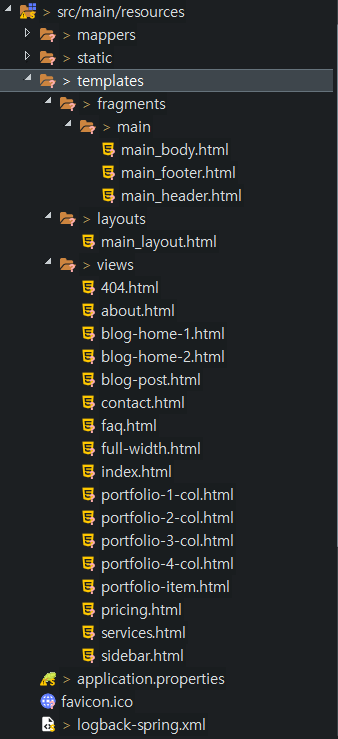

3. 경로 설정



나는 위와 같은 구조로 사용함





4. 레이아웃 설정



- main_layout.html

<!DOCTYPE html>
<html lang="ko" xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org">
	<head th:replace="fragments/main/main_header :: mainHead"> </head>
	<body th:replace="fragments/main/main_body :: mainBody"> </body>
</html>



- main_header.html

<!DOCTYPE html>
<html lang="ko" xmlns="http://www.w3.org/1999/xhtml"
xmlns:th="http://www.thymeleaf.org"
xmlns:layout="http://www.ultraq.net.nz/thymeleaf/layout">
<head th:fragment="mainHead">
	<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
	<meta content='width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no' name='viewport'>
	<meta name="description" content="">
	<meta name="author" content="">
	<th:block layout:fragment="html_head">
		<title>테스트야야</title>
	</th:block>

	<!-- Bootstrap core CSS -->
	<link th:href="@{/webjars/bootstrap/4.1.0/css/bootstrap.min.css}" rel="stylesheet">
	<!-- Custom styles for this template -->
	<link th:href="@{/assets/boots/css/modern-business.css}" rel="stylesheet">

	<!-- Bootstrap core JavaScript -->
	<script th:src="@{/webjars/jquery/3.3.1/jquery.min.js}"></script>
	<script th:src="@{/webjars/bootstrap/4.1.0/js/bootstrap.bundle.min.js}"></script>
	<script th:src="@{/assets/boots/js/jqBootstrapValidation.js}"></script>
	<script th:src="@{/assets/boots/js/contact_me.js}"></script>

<!-- 	<link rel="stylesheet" th:href="@{/lib/AdminLTE-2.4.2/bower_components/bootstrap/dist/css/bootstrap.min.css}" /> -->

	<th:block layout:fragment="add_lib_css"></th:block>

<!-- 	<link rel="stylesheet" th:href="@{/css/common/loading.css}" /> -->
    <th:block layout:fragment="custom_css"></th:block>

</head>
</html>



- main_body.html

<!DOCTYPE html>
<html lang="ko" xmlns="http://www.w3.org/1999/xhtml"
xmlns:th="http://www.thymeleaf.org"
xmlns:layout="http://www.ultraq.net.nz/thymeleaf/layout">

<body th:fragment="mainBody">
<!-- Navigation -->
  <nav class="navbar fixed-top navbar-expand-lg navbar-dark bg-dark fixed-top">
    <div class="container">
      <a class="navbar-brand" th:href="@{/}">테스트ㄱㄱ</a>
      <button class="navbar-toggler navbar-toggler-right" type="button" data-toggle="collapse" data-target="#navbarResponsive" aria-controls="navbarResponsive" aria-expanded="false" aria-label="Toggle navigation">
        <span class="navbar-toggler-icon"></span>
      </button>
      <div class="collapse navbar-collapse" id="navbarResponsive">
        <ul class="navbar-nav ml-auto">
          <li class="nav-item">
            <a class="nav-link" href="about">About</a>
          </li>
          <li class="nav-item">
            <a class="nav-link" href="services">Services</a>
          </li>
          <li class="nav-item">
            <a class="nav-link" href="contact">Contact</a>
          </li>
          <li class="nav-item dropdown">
            <a class="nav-link dropdown-toggle" href="#" id="navbarDropdownPortfolio" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
              Portfolio
            </a>
            <div class="dropdown-menu dropdown-menu-right" aria-labelledby="navbarDropdownPortfolio">
              <a class="dropdown-item" href="portfolio-1-col">1 Column Portfolio</a>
              <a class="dropdown-item" href="portfolio-2-col">2 Column Portfolio</a>
              <a class="dropdown-item" href="portfolio-3-col">3 Column Portfolio</a>
              <a class="dropdown-item" href="portfolio-4-col">4 Column Portfolio</a>
              <a class="dropdown-item" href="portfolio-item">Single Portfolio Item</a>
            </div>
          </li>
          <li class="nav-item dropdown">
            <a class="nav-link dropdown-toggle" href="#" id="navbarDropdownBlog" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
              Blog
            </a>
            <div class="dropdown-menu dropdown-menu-right" aria-labelledby="navbarDropdownBlog">
              <a class="dropdown-item" href="blog-home-1">Blog Home 1</a>
              <a class="dropdown-item" href="blog-home-2">Blog Home 2</a>
              <a class="dropdown-item" href="blog-post">Blog Post</a>
            </div>
          </li>
          <li class="nav-item dropdown">
            <a class="nav-link dropdown-toggle" href="#" id="navbarDropdownBlog" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
              Other Pages
            </a>
            <div class="dropdown-menu dropdown-menu-right" aria-labelledby="navbarDropdownBlog">
              <a class="dropdown-item" href="full-width">Full Width Page</a>
              <a class="dropdown-item" href="sidebar">Sidebar Page</a>
              <a class="dropdown-item" href="faq">FAQ</a>
              <a class="dropdown-item" href="404">404</a>
              <a class="dropdown-item" href="pricing">Pricing Table</a>
            </div>
          </li>
        </ul>
      </div>
    </div>
  </nav>

    <div class="wrapper">
        <th:block layout:fragment="content_body"></th:block>
        <th:block th:include="fragments/main/main_footer"></th:block>
    </div>

<!--     <script th:src="@{/js/common/common_main.js}"></script> -->

    <th:block layout:fragment="custom_js"></th:block>

</body>
</html>



- main_footer.html

<!DOCTYPE html>
<html lang="ko" xmlns="http://www.w3.org/1999/xhtml"
xmlns:th="http://www.thymeleaf.org"
xmlns:layout="http://www.ultraq.net.nz/thymeleaf/layout">

<!-- Footer -->
  <footer class="py-5 bg-dark">
    <div class="container">
      <p class="m-0 text-center text-white">Copyright &copy; Your Website 2019</p>
    </div>
    <!-- /.container -->
  </footer>
</html>







- index.html

<!DOCTYPE html>
<html lang="ko" xmlns="http://www.w3.org/1999/xhtml"
xmlns:th="http://www.thymeleaf.org"
xmlns:layout="http://www.ultraq.net.nz/thymeleaf/layout"
layout:decorator="layouts/main_layout">

<body>
<th:block layout:fragment="content_body">

  <header>
    <div id="carouselExampleIndicators" class="carousel slide" data-ride="carousel">
      <ol class="carousel-indicators">
        <li data-target="#carouselExampleIndicators" data-slide-to="0" class="active"></li>
        <li data-target="#carouselExampleIndicators" data-slide-to="1"></li>
        <li data-target="#carouselExampleIndicators" data-slide-to="2"></li>
      </ol>
      <div class="carousel-inner" role="listbox">
        <!-- Slide One - Set the background image for this slide in the line below -->
        <div class="carousel-item active" style="background-image: url('http://placehold.it/1900x1080')">
          <div class="carousel-caption d-none d-md-block">
            <h3>First Slide</h3>
            <p>This is a description for the first slide.</p>
          </div>
        </div>
        <!-- Slide Two - Set the background image for this slide in the line below -->
        <div class="carousel-item" style="background-image: url('http://placehold.it/1900x1080')">
          <div class="carousel-caption d-none d-md-block">
            <h3>Second Slide</h3>
            <p>This is a description for the second slide.</p>
          </div>
        </div>
        <!-- Slide Three - Set the background image for this slide in the line below -->
        <div class="carousel-item" style="background-image: url('http://placehold.it/1900x1080')">
          <div class="carousel-caption d-none d-md-block">
            <h3>Third Slide</h3>
            <p>This is a description for the third slide.</p>
          </div>
        </div>
      </div>
      <a class="carousel-control-prev" href="#carouselExampleIndicators" role="button" data-slide="prev">
        <span class="carousel-control-prev-icon" aria-hidden="true"></span>
        <span class="sr-only">Previous</span>
      </a>
      <a class="carousel-control-next" href="#carouselExampleIndicators" role="button" data-slide="next">
        <span class="carousel-control-next-icon" aria-hidden="true"></span>
        <span class="sr-only">Next</span>
      </a>
    </div>
  </header>

  <!-- Page Content -->
  <div class="container">

    <h1 class="my-4">Welcome to Modern Business</h1>

    <!-- Marketing Icons Section -->
    <div class="row">
      <div class="col-lg-4 mb-4">
        <div class="card h-100">
          <h4 class="card-header">Card Title</h4>
          <div class="card-body">
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipisicing elit. Sapiente esse necessitatibus neque.</p>
          </div>
          <div class="card-footer">
            <a href="#" class="btn btn-primary">Learn More</a>
          </div>
        </div>
      </div>
      <div class="col-lg-4 mb-4">
        <div class="card h-100">
          <h4 class="card-header">Card Title</h4>
          <div class="card-body">
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipisicing elit. Reiciendis ipsam eos, nam perspiciatis natus commodi similique totam consectetur praesentium molestiae atque exercitationem ut consequuntur, sed eveniet, magni nostrum sint fuga.</p>
          </div>
          <div class="card-footer">
            <a href="#" class="btn btn-primary">Learn More</a>
          </div>
        </div>
      </div>
      <div class="col-lg-4 mb-4">
        <div class="card h-100">
          <h4 class="card-header">Card Title</h4>
          <div class="card-body">
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipisicing elit. Sapiente esse necessitatibus neque.</p>
          </div>
          <div class="card-footer">
            <a href="#" class="btn btn-primary">Learn More</a>
          </div>
        </div>
      </div>
    </div>
    <!-- /.row -->

    <!-- Portfolio Section -->
    <h2>Portfolio Heading</h2>

    <div class="row">
      <div class="col-lg-4 col-sm-6 portfolio-item">
        <div class="card h-100">
          <a href="#"><img class="card-img-top" src="http://placehold.it/700x400" alt=""></a>
          <div class="card-body">
            <h4 class="card-title">
              <a href="#">Project One</a>
            </h4>
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipisicing elit. Amet numquam aspernatur eum quasi sapiente nesciunt? Voluptatibus sit, repellat sequi itaque deserunt, dolores in, nesciunt, illum tempora ex quae? Nihil, dolorem!</p>
          </div>
        </div>
      </div>
      <div class="col-lg-4 col-sm-6 portfolio-item">
        <div class="card h-100">
          <a href="#"><img class="card-img-top" src="http://placehold.it/700x400" alt=""></a>
          <div class="card-body">
            <h4 class="card-title">
              <a href="#">Project Two</a>
            </h4>
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam viverra euismod odio, gravida pellentesque urna varius vitae.</p>
          </div>
        </div>
      </div>
      <div class="col-lg-4 col-sm-6 portfolio-item">
        <div class="card h-100">
          <a href="#"><img class="card-img-top" src="http://placehold.it/700x400" alt=""></a>
          <div class="card-body">
            <h4 class="card-title">
              <a href="#">Project Three</a>
            </h4>
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quos quisquam, error quod sed cumque, odio distinctio velit nostrum temporibus necessitatibus et facere atque iure perspiciatis mollitia recusandae vero vel quam!</p>
          </div>
        </div>
      </div>
      <div class="col-lg-4 col-sm-6 portfolio-item">
        <div class="card h-100">
          <a href="#"><img class="card-img-top" src="http://placehold.it/700x400" alt=""></a>
          <div class="card-body">
            <h4 class="card-title">
              <a href="#">Project Four</a>
            </h4>
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam viverra euismod odio, gravida pellentesque urna varius vitae.</p>
          </div>
        </div>
      </div>
      <div class="col-lg-4 col-sm-6 portfolio-item">
        <div class="card h-100">
          <a href="#"><img class="card-img-top" src="http://placehold.it/700x400" alt=""></a>
          <div class="card-body">
            <h4 class="card-title">
              <a href="#">Project Five</a>
            </h4>
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam viverra euismod odio, gravida pellentesque urna varius vitae.</p>
          </div>
        </div>
      </div>
      <div class="col-lg-4 col-sm-6 portfolio-item">
        <div class="card h-100">
          <a href="#"><img class="card-img-top" src="http://placehold.it/700x400" alt=""></a>
          <div class="card-body">
            <h4 class="card-title">
              <a href="#">Project Six</a>
            </h4>
            <p class="card-text">Lorem ipsum dolor sit amet, consectetur adipisicing elit. Itaque earum nostrum suscipit ducimus nihil provident, perferendis rem illo, voluptate atque, sit eius in voluptates, nemo repellat fugiat excepturi! Nemo, esse.</p>
          </div>
        </div>
      </div>
    </div>
    <!-- /.row -->

    <!-- Features Section -->
    <div class="row">
      <div class="col-lg-6">
        <h2>Modern Business Features</h2>
        <p>The Modern Business template by Start Bootstrap includes:</p>
        <ul>
          <li>
            <strong>Bootstrap v4</strong>
          </li>
          <li>jQuery</li>
          <li>Font Awesome</li>
          <li>Working contact form with validation</li>
          <li>Unstyled page elements for easy customization</li>
        </ul>
        <p>Lorem ipsum dolor sit amet, consectetur adipisicing elit. Corporis, omnis doloremque non cum id reprehenderit, quisquam totam aspernatur tempora minima unde aliquid ea culpa sunt. Reiciendis quia dolorum ducimus unde.</p>
      </div>
      <div class="col-lg-6">
        <img class="img-fluid rounded" src="http://placehold.it/700x450" alt="">
      </div>
    </div>
    <!-- /.row -->

    <hr>

    <!-- Call to Action Section -->
    <div class="row mb-4">
      <div class="col-md-8">
        <p>Lorem ipsum dolor sit amet, consectetur adipisicing elit. Molestias, expedita, saepe, vero rerum deleniti beatae veniam harum neque nemo praesentium cum alias asperiores commodi.</p>
      </div>
      <div class="col-md-4">
        <a class="btn btn-lg btn-secondary btn-block" href="#">Call to Action</a>
      </div>
    </div>

  </div>
  <!-- /.container -->




</th:block>
</body>

</html>



5.테스트

@Controller
public class MainController {
	final Logger logger = LoggerFactory.getLogger(MainController.class);

	@GetMapping("/index")
	public String goHome() {
		return "views/index";
	}
}



난 무료 부트스트랩 템플릿을 이용하여 index.html을 꾸몄다.

위와 같이 코드를 작성 및 호출 결과 화면은 잘 나왔다.



그러나 타임리프 태그를 이해하고 사용하는데에는 적응이 안되서인지 꽤나 번거로움이 많았고

아직도 못다뤄본 태그가 너무 많아 앞으로 공부가 더 많이 필요할 것으로 보인다.



 타임리프 공식 튜토리얼 : https://www.thymeleaf.org/doc/tutorials/3.0/usingthymeleaf.html

저작자표시

'(구)개발' 카테고리의 다른 글

Spring Boot #2 / 스프링부트 MySql, MyBatis 연결 하기  (2) 2019.12.04
Spring Boot #1/ 스프링부트 시작하기  (0) 2019.11.30
GIS] 내 위치 중심 반경 검색하기 JAVA ANDROID ALTIBASE LEAFLET 지도 검색  (0) 2019.07.31
하이브리드앱에서 내 위치(좌표) 가져오기 #webview #javascriptinterface #gps  (0) 2019.07.12
내 인생을 바꿔줄 JAVA소스, 로또  (0) 2019.07.10
공지사항
최근에 올라온 글
최근에 달린 댓글
Total
Today
Yesterday
링크
TAG more
«   2024/05   »
일 월 화 수 목 금 토
1 2 3 4
5 6 7 8 9 10 11
12 13 14 15 16 17 18
19 20 21 22 23 24 25
26 27 28 29 30 31
글 보관함
